MIKROTIK R52N
Product Description
MINI-PCI ADAPTER 802.11a/g/n
Data Sheet (PDF)

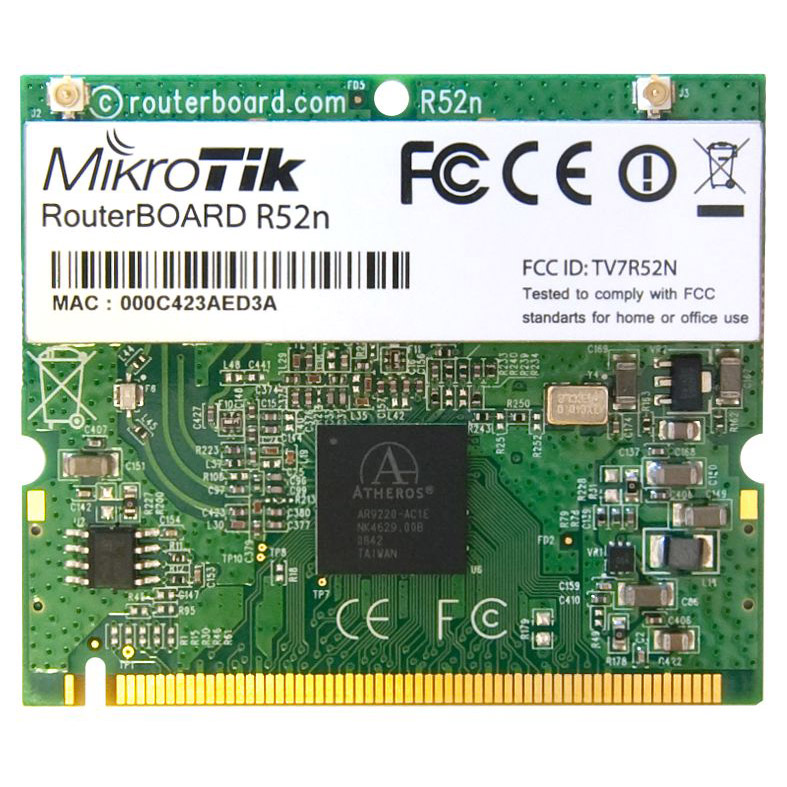

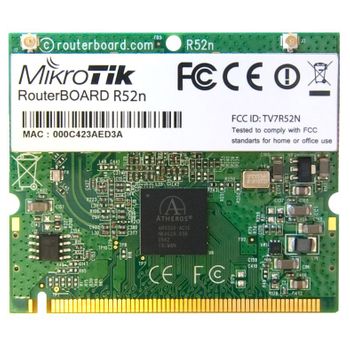

The RouterBOARD R52n miniPCI network adapter provides leading 802.11a/b/g/n performance in both 2GHz and 5GHz bands, supporting up to 300Mbps physical data rates and up to 200Mbps of actual user throughput on both the uplink and downlink. Adding Wireless N to your Wireless device, it provides higher efficiency for everyday activities such as local network file transfers, Internet browsing, and media streaming.
Features Include:
Dual band IEEE 802.11a/b/g/n standard
Output Power of up to 25dBm @ b/g/n Band
Support for up to 2x2 MIMO with spatial multiplexing
Four times the throughput of 802.11a/g
Atheros AR9220, chipset
High Performance (up to 300Mbps physical data rates and 200Mbps of actual user throughput) with Low Power Consumption
2 X U.FL Antenna Connector
Modulations:
OFMD: BPSK, QPSK, 16 QAM, 64QAM
DSSS: DBPSK, DQPSK, CCK
Operating temperatures: 0ēC to 60ēC
Power consumption MAX 2.4W
ESD protection agaist +/-10kV ESD discharge on Antenna port
R52n
R52n is end of life (EOL). MikroTik recommends R52nM for functional replacement.
