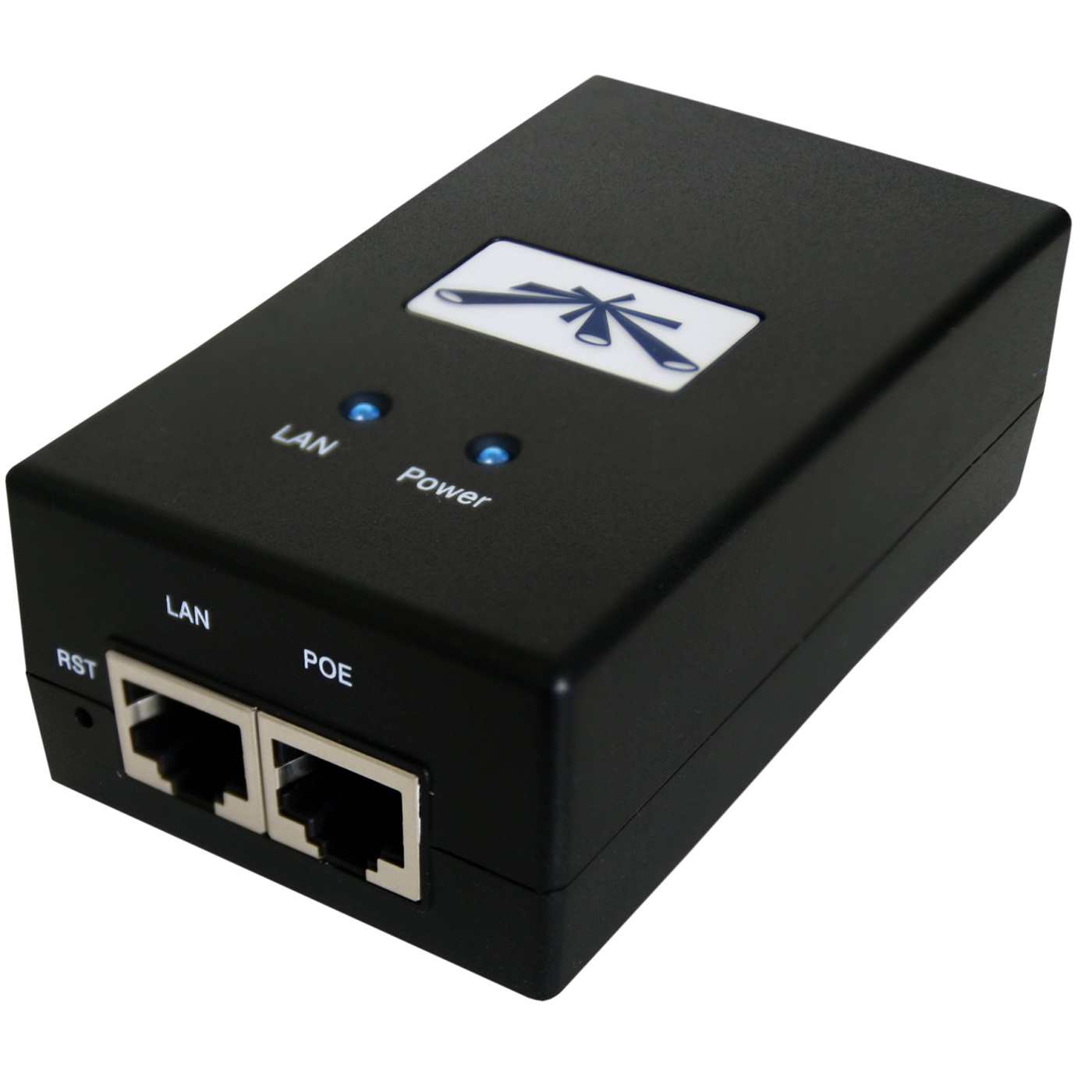

UBIQUITI POE-24
Product Description
24V POE ADAPTER WITH POWER CORD, US-STYLE PLUG
Data Sheet (PDF)
The POE-24 (24V, 24W) features earth grounding/ESD protection, power LED, and is available in USA (NEMA 5-15) and EU (CEE 7/16) Versions.
Features Include:
• Output Voltage: 24VDC @ 1.0A
• Input Voltage: 90-260VAC @ 47-63Hz
• Input Current: 0.3A @ 120VAC, 0.2A @230VAC
• Efficiency: 70+%
• Output Ripple: 1% Max
• Switching Frquency: 200kHz
• Line Regulation: +/- 0.5%
• Load Regulation: +/- 1%
• Operating Temperature: -10C to +60 deg C
• Storage Temperature: -20C to +85 deg C
• Operating Humidity: 5% to 90% non condensing
• Size: 3.35 x 1.7 x 1.18in (85 x 43 x 30mm)
