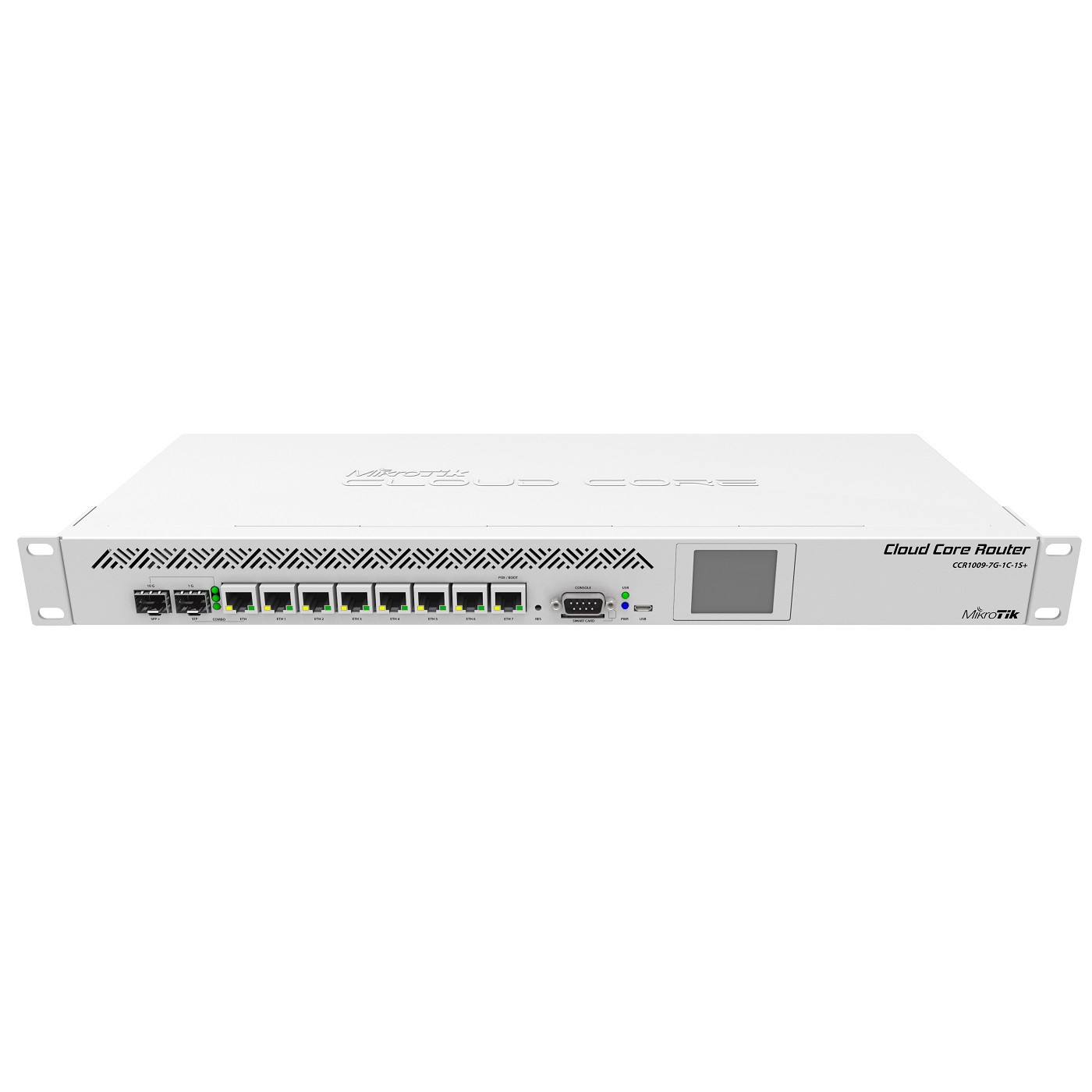

MIKROTIK CCR1009-7G-1C-1S+
Product Description
Cloud Core Router
Data Sheet (PDF)
The new updated revision of CCR1009 is here. MikroTik attempted to combine all the customer feedback and best practice in CCR device manufacturing that they learned over the last three years, since the first CCR1009 devices were launched.
Important changes:
No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.
Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature. 100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.
More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.
• 1U rackmount
• 7x Gigabit Ethernet
• 1x Combo port (SFP or Gigabit Ethernet)
• 1xSFP+ cage
• 9 cores x 1.2GHz CPU
• 2GB RAM
• LCD panel
• Dual Power supplies
• SmartCard slot
• RouterOS L6
• CCR1009-7G-1C-1S+
Data Sheet (PDF)
The new updated revision of CCR1009 is here. MikroTik attempted to combine all the customer feedback and best practice in CCR device manufacturing that they learned over the last three years, since the first CCR1009 devices were launched.
Important changes:
No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.
Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature. 100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.
More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.
• 1U rackmount
• 7x Gigabit Ethernet
• 1x Combo port (SFP or Gigabit Ethernet)
• 1xSFP+ cage
• 9 cores x 1.2GHz CPU
• 2GB RAM
• LCD panel
• Dual Power supplies
• SmartCard slot
• RouterOS L6
• CCR1009-7G-1C-1S+
