Item# AM-5AC22-45
Availability: Usually ships in 6-8 weeks.

Product Description

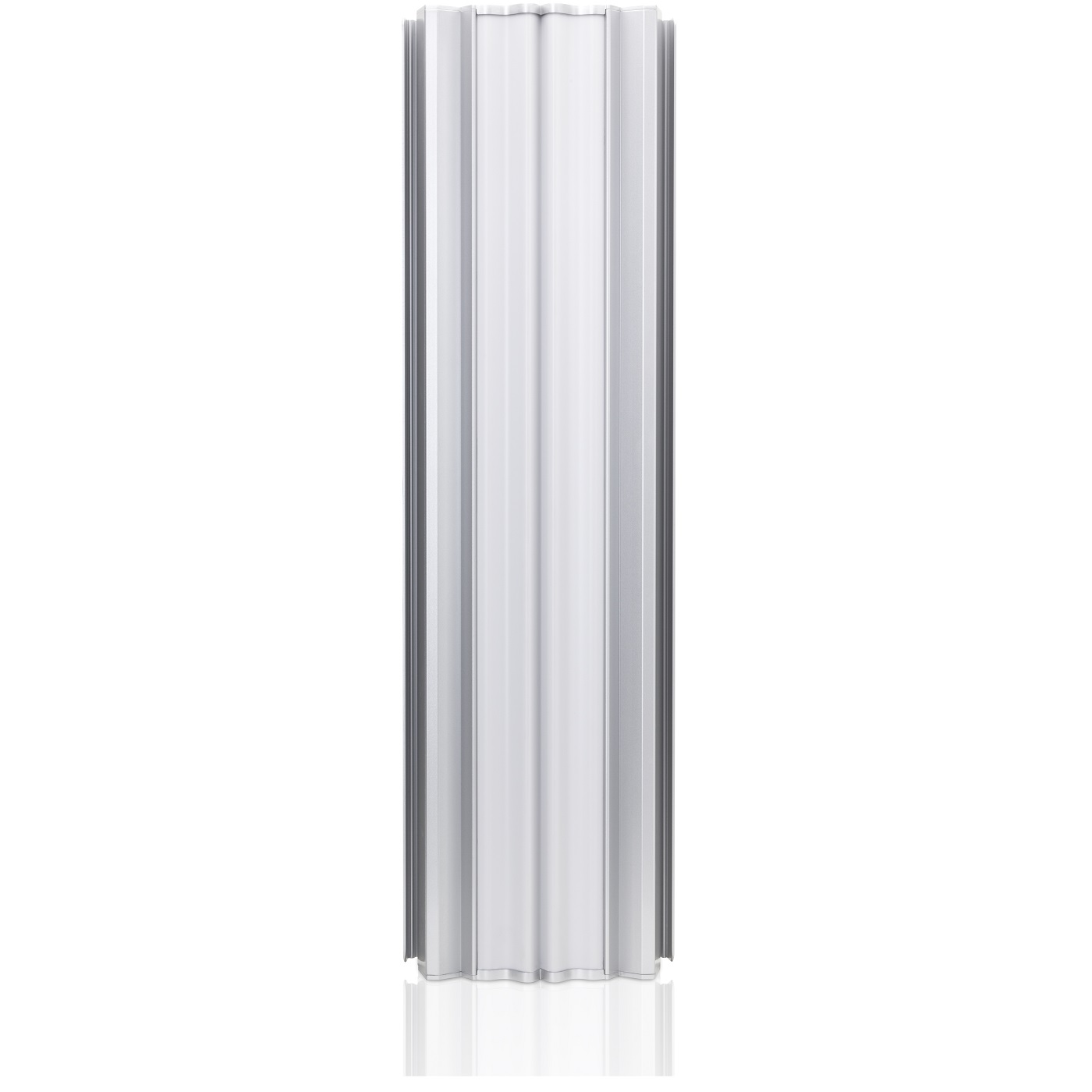

airMAX AC Sector 5 GHz, 45, 22 dBi Antenna

Data Sheet (PDF)

airMAX ac 2x2 BaseStation Sector Antenna

The airMAX ac Sector Antennas feature significant advances in scalability, noise isolation and beam performance to complement the Rocket5ac radios in Point-to-MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.

Frequency Range: 5.10-5.85 GHz
Gain: 22dBi
Polarization: Dual Linear
Cross-pol Isolation: 25dB min
Max VSWR: 1.5:1
Hpol Beamwidth (6dB): 45 deg.
Vpol Beamwidth (6dB): 45 deg.
Elevation Beamwidth: 4 deg.
Electrical Downtilt: 2 deg.
ETSI Specification: EN 302 326 DN2
Dimensions: 29.53 x 8.47 x 3.70in (750 x 215 x 94mm)
Weight: 13.23 lbs (6.0kg)
