Item# AF-5X
Availability: Contact us for availability.

Product Description

airFiber, 500+ Mbps Backhaul, 5.1-5.8 GHz

AF-5X is end of life (EOL). Ubiquiti recommends AF-5XHD for functional replacement.

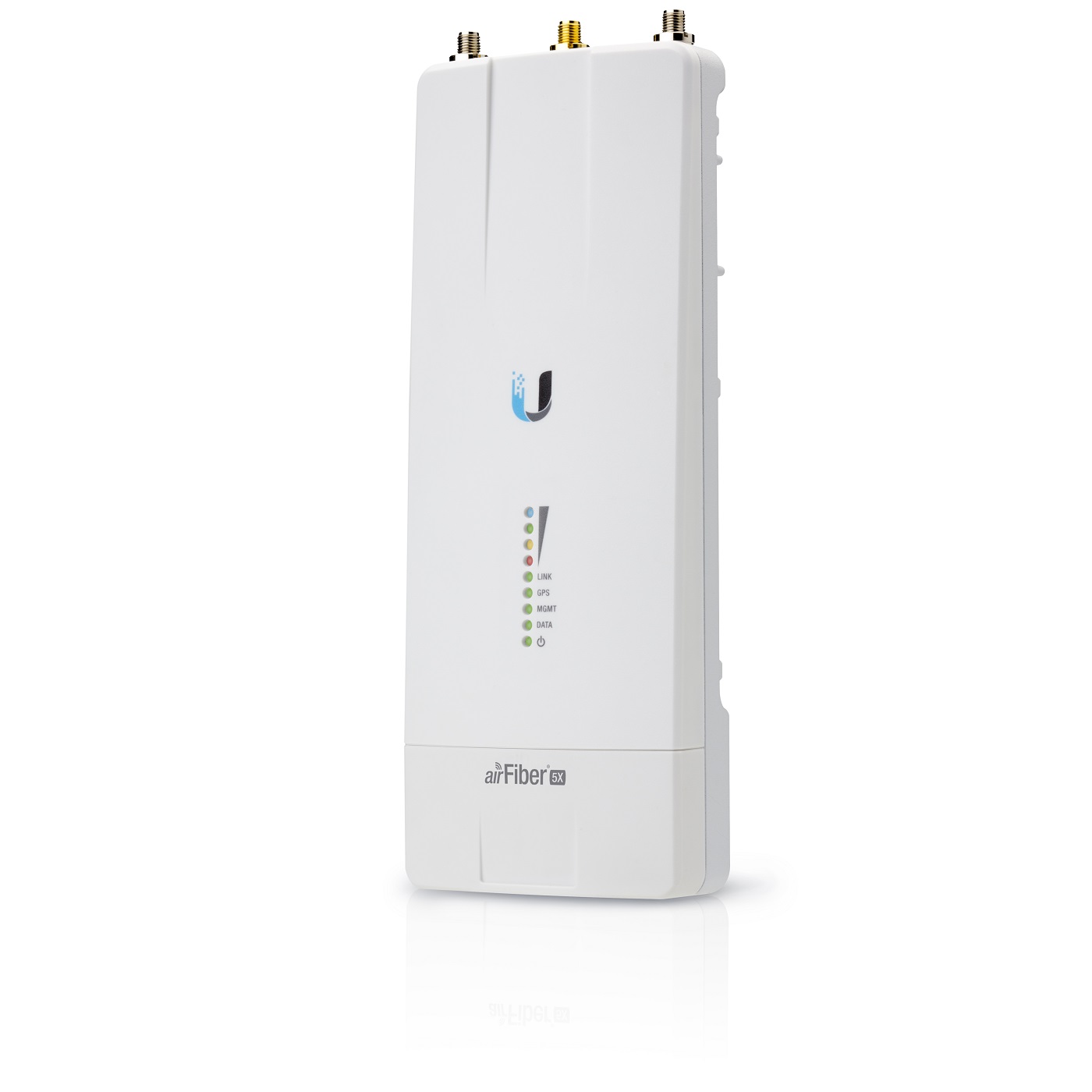

airFiber: Carrier Class, Point-to-Point Gigabit Radio

Data Sheet (PDF)

UbiquitiNetworks continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing by introducing airFiberX, a modular airFiber radio system that will serve a wide range of frequencies and is designed to be compatible with a variety of Ubiquiti antennas. Building upon the proven design of the airMAX Rocket system, airFiber X allows you to customize airFiber backhaul links or upgrade existing Rocket Point-to-Point (PtP) links. The first airFiber X model is the AF-5X model for use in the 5 GHz frequency band.

Product Details
Operating Frequency: 5150-5850 MHz
Dimensions: 8.9 x 3.2 x 1.9 (224 x 82 x 48 mm)
Weight: 0.77 lb (0.35 kg)
Max. Power Consumption: 12W
Power Supply: 24V 1A PoE GigE Adapter (Included)
Power Method: Passive Power over Ethernet (42-58VDC)
Operating Temperature: -40 to 131 F (-40 to 55C)
Rocket Mount Compatible, GPS Pole Mount (Included)

Additional Information
500+ Mbps, aggregate throughput
120+ mi (200+ km) range
Worldwide License-Free 5 GHz frequency
Intuitive airFiber Configuration Interface

US power cord, US/FCC channel/frequency plan only

***Ubiquiti pricing is per SIDE. Requires 2 units for a single link.***
