Item# AF-5
Availability: Usually ships in 6-8 weeks.

Product Description

airFiber, 1+ Gbps Backhaul, 5.4-5.8 GHz

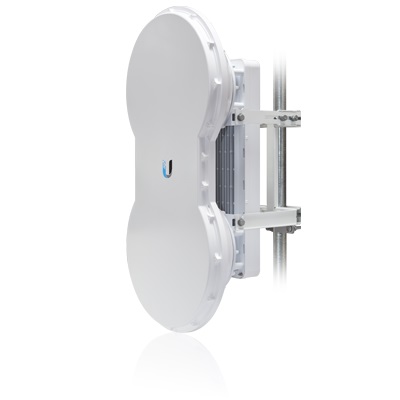

airFiber: Carrier Class, Point-to-Point Gigabit Radio

Data Sheet (PDF)

Introducing airFiber, a truly revolutionary Point-to-Point wireless platform from Ubiquiti Networks. Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range. airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.

There are two airFiber models available for the 5 GHz spectrum. The model, AF5, features the popular mid-band frequencies, which are freely used in many parts of theworld. The high-band model, AF5U, which can operate in the 5.7-6.2GHz bands, has robust filtering to enable co-location with devices operating in the lower 5 GHz bands while allowing operation at a higher output power in many areas of the world.

Product Details
Operating Frequency: 5470-5600MHz, 5650-5850MHz
Dimensions: 36.9 x 18.4 x 11.1 in (938 x 468 x 281mm)
Weight: 35.3 lbs (16kg) mount Included
Max. Power Consumption: 40W
Power Supply: 50V, 1.2A PoE GigE Adapter (Included)
Power Method: Passive Power over Ethernet (42-58VDC)
Pole Mount Kit (Included)
Operating Temperature: -40 to 131 F (-40 to 55C)

Additional Information
1.2+ Gbps, aggregate throughput
60+ mi (100+ km) range
Worldwide License-Free 5 GHz frequency
Intuitive airFiber Configuration Interface

US power cord, US/FCC channel/frequency plan only

***Ubiquiti pricing is per SIDE. Requires 2 units for a single link.***
