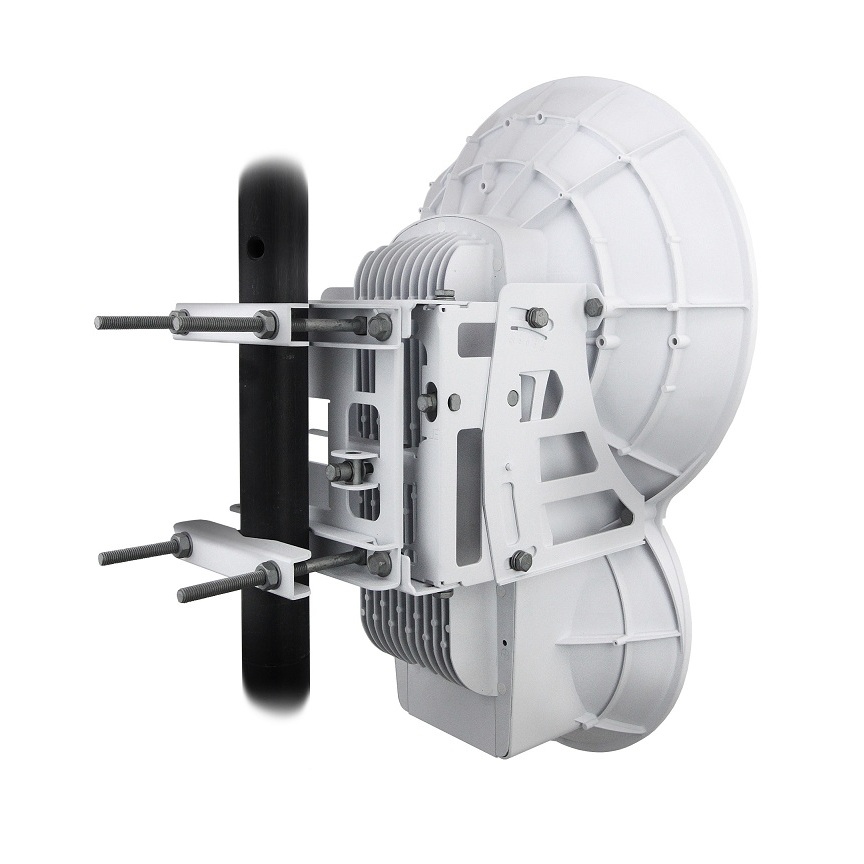

UBIQUITI AIRFIBER-24
Product Description
airFiber, 1.4+ Gbps Backhaul, 24 GHz
airFiber: Carrier Class, Point-to-Point Gigabit Radio
Data Sheet (PDF)
Click here to view design guide
airFiber AF-24 provides a breakthrough in 24 GHz backhaul performance. Two models deliver superior speed with spectral efficiency in the worldwide, license-free, 24 GHz radio band. The standard model, AF-24, delivers up to 1.4+ Gbps throughput at a range of up to 13+ km.
The heavy-duty model, AF-24HD, provides more throughput at up to 2 Gbps and increased range of up to 20+ km. It also includes a more rugged exterior with a metal reflector, to protect against natures harshest elements. AF-24HD supports the dense modulation rates, up to 256QAM, that are required for high data rates.
Product Details
Operating Frequency: 24.05 24.25GHz
Dimensions: 25.6 x 16.8 x 11.9in (649 x 426 x 303mm)
Weight: 23.1 lbs (10.5 kg) mount Included
Max. Power Consumption: 50W
Power Supply: 50V, 1.2A PoE GigE Adapter (Included)
Power Method: Passive Power over Ethernet (42-58VDC)
Pole Mount Kit (Included)
Operating Temperature: -40 to 131° F (-40 to 55°C)
Additional Information
1.4+ Gbps, aggregate throughput
8+ mi (13+ km) range
Worldwide License-Free 24 GHz frequency
Intuitive airFiber Configuration Interface
US power cord, US/FCC channel/frequency plan only
***Ubiquiti pricing is per SIDE. Requires 2 units for a single link.***
