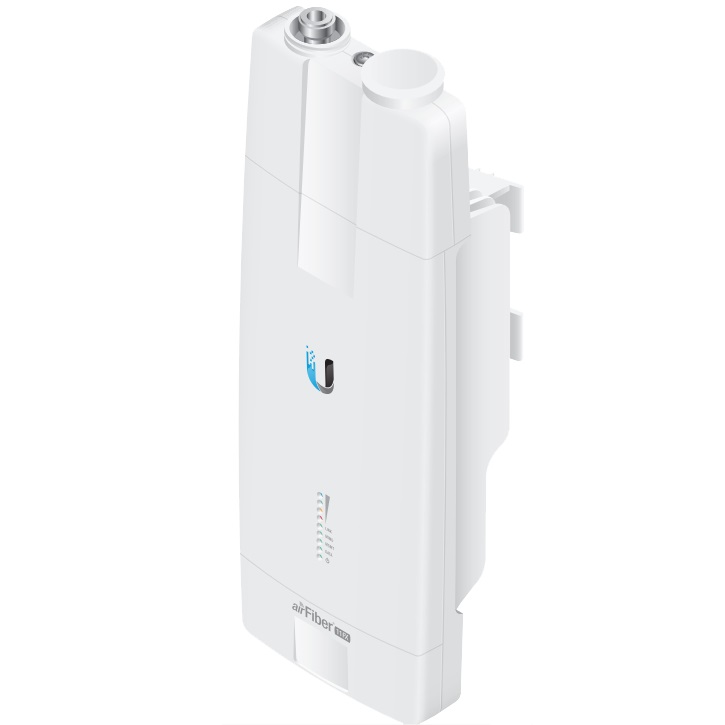

UBIQUITI AIRFIBER-11FX-H

AF-11FX-H is end of life (EOL). Ubiquiti recommends AF11-Complete-HB for functional replacement.


airFiber: Carrier Class, Point-to-Point Gigabit Radio

Data Sheet (PDF)

The airFiber AF-11FX is a purpose-built radio for outdoor PtP bridging and carrier-class network backhauls using the licensed 11 GHz radio band. The AF-11FX breaks free from the congested 5 GHz band to help meet the growing need for broadband capacity. For maximum flexibility, the airFiber AF-11FX works with the Ubiquiti AF-11G35 antenna or with most third-party antennas using an optional adapter kit (not included).

Each AF-11FX-H includes one high-band duplexer for SISO mode configuration. MIMO mode configuration requires a second high-band duplexer (not included). Each duplexer has a low channel and a high channel that can be configured by simply reversing the position of the duplexer.

• Full-Duplex, Point-to-Point Radio
• 11GHz Frequency Operation
• Up to 1.2+ Gbps Throughput
• 180+ mi (300+ km) range
• High-Band Duplexer, Low Channel: 10.940 - 11.200GHz
• High-Band Duplexer, High Channel: 11.440 - 11.700GHz

***Ubiquiti pricing is per SIDE. Requires 2 units for a single link.***
