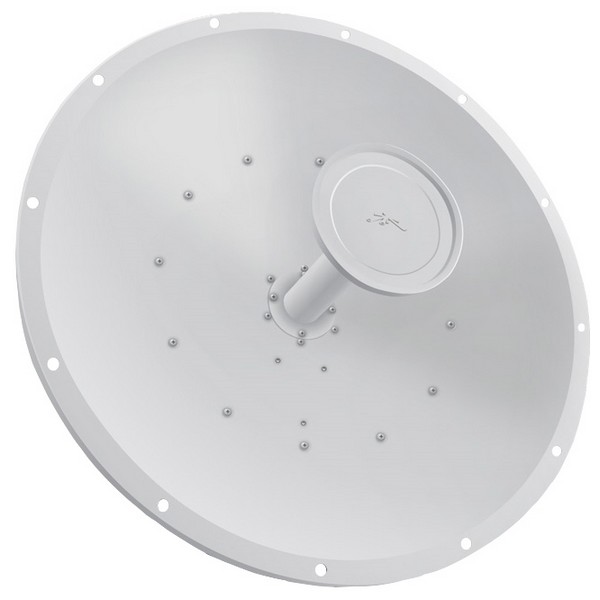

UBIQUITI NETWORKS ROCKETDISH 5G-30

4.9-5.9GHZ PARABOLIC DISH ANTENNA 30DBI DUAL-POL

Click here to view data sheet

RocketDish 5G-30: 5GHz AirMax 2x2 PtP Bridge Dish Antenna

New Technology OMT Design
Carrier Class Performance. Breakthrough Price Points. Instantly pair with Rocket M5 to create powerful 2x2 MIMO PtP Bridging applications. Rocket mount and weatherproof RF jumpers included.

Rocket M Seamlessly Integrates with Rocket Dish Antenna
Rocket M and AirMax BaseStation/Rocket antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket antennas requires no special tools, you simply snap it into place with the mount provided with the antennas.
• Frequency Range: 4.90-5.90 GHz
• Gain: 28.0-30.25dBi
• Polarization: Dual Linear
• Cross-pol Isolation: 35dB min
• Max VSWR: 1.4:1
• Hpol Beamwidth (3dB): 5 deg.
• Vpol Beamwidth (3dB): 5 deg.
• F/B Ratio: -34dB
• ETSI Specification: EN 302 326 DN2
• Dimensions: 25.5in (648mm) diameter
• Weight: 21.6lbs (9.8kg)
• Wind Survivability: 120 mph
• Windloading: 113lb@100mph
